ATP5330_制冷型、超薄、超高分辨率、M型光路光纖光譜儀
ATP5330-制冷型、超薄、超高分辨率、M型光路光纖光譜儀
產品概述

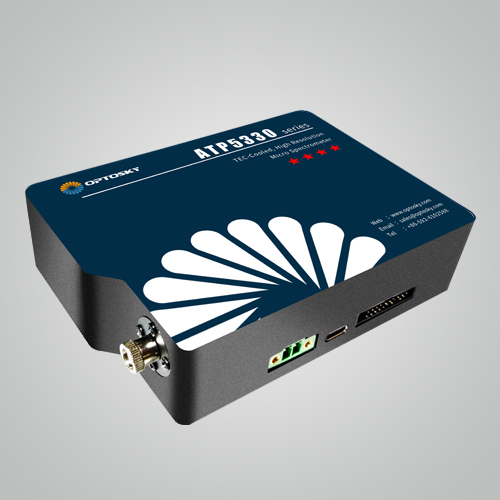

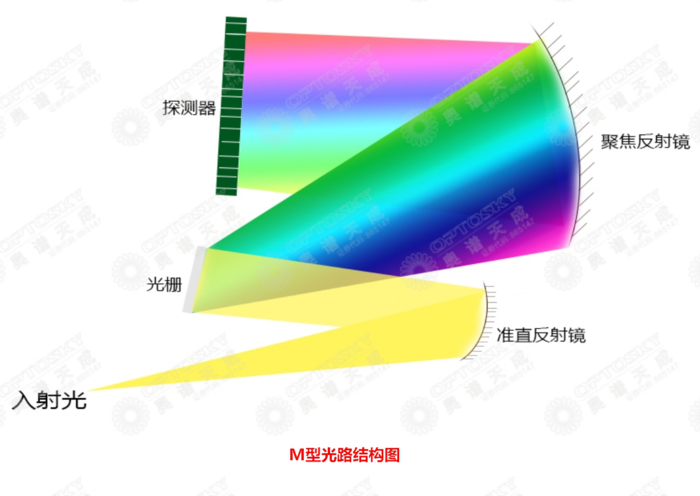

ATP3330和ATP5330是奧譜天成新開發的一款超薄、制冷型、超高分辨率微型光譜儀，ATP3330和ATP5330是基于奧譜天成自主研發的M型光路結構，具有非凡的超高分辨率；同時，它采用制冷的2048或4096像素線陣探測器，達到了極致的超高分辨率，最高分辨率可達0.05nm，適用于各種高分辨率應用場合，同時具備高可靠性、超高速、低成本、高性價比等特性，可適應在線測試等各種環境用途的微型光譜儀。
ATP3330為非制冷的，ATP5330則采用TEC電制冷，制冷溫度-5℃，大大降低了光譜儀的暗電流和噪聲，提高了光譜儀的動態范圍和信噪比，同時提高了光譜儀的環境適應性。ATP5330P則采用制冷背照式CCD，信噪比更優。
ATP3330和ATP5330可接收SMA905光纖輸入光或者自由空間光，通過USB2.0或者UART端口，輸出測量所得的光譜數據。
ATP3330只需要一個5V直流電源供電或直接從USB接口取電，非常便于集成使用。ATP5330則需要額外的5V電源。
|
探測器制冷？ |
探測器像素 |
|
|
ATP3330 |
否 |
2048 |
|
ATP3334 |
否 |
4096 |
|
ATP5330 |
是，-5℃ |
2048 |
|
ATP5334 |
是，-5℃ |
4096 |
|
ATP5330P |
是，-10℃，背照式CCD |
2048 |
特征
Ø M型光路，更高分辨率；
Ø 光譜范圍: 200-1100 nm；
Ø 光譜分辨率: 0.05 ~ 3 nm；
Ø 光路結構: 非交叉C-T；
Ø 檢測器： 2048或4096像素；
Ø 探測器制冷溫度：-5 ℃
Ø 積分時間: 0.1ms ~ 256s；
Ø 供電電源: 直流5V 供電；
Ø ADC位深：16位；
Ø 數據輸出接口：USB Type-C；
Ø 20針擴展接口；
應用領域
Ø LIBS、等離子體發光檢測；
Ø 拉曼光譜檢測；
Ø 波長監測，激光、LED等發光體
Ø 水質分析儀
Ø LED分選機、顏色檢測；
Ø 光譜分析、輻射分光分析、分光光度分析
Ø 反射、透射光譜檢測
3 Electrical Pin-out
Table 1 Electrical Characteristics
|
Parameter |
Min |
Typ |
Max |
Unit |
|
Power Supply |
||||
|
Operating voltage range |
4.5 |
5 |
5.5 |
V |
|
Operating current |
170 |
mA |
||
|
Logic Inputs(3.3V LVTTL, Five-volt tolerant) |
||||
|
High level input voltage |
1.7 |
3.6 |
V |
|
|
Low level input voltage |
-0.3 |
1.0 |
V |
|
|
Logic Output(3.3V LVTTL) |
||||
|
High level output voltage |
2.4 |
V |
||
|
Low level output voltage |
0.4 |
V |
The module is equipped with a 30-pin male angled box header(2x15, 2.00 mm pitch) and Type-C interface.
Table 2 Electrical Pin-Out
|
Pin# |
Description |
I/O |
Function Description |
|
1 |
VCC |
/ |
Power Supply, 5V±0.5, |
|
2 |
GND |
/ |
Ground |
|
3 |
UART_TX |
Output |
UART Transmit signal |
|
4 |
UART_RX |
Input |
UART Receive signal |
|
5 |
Lamp_En |
Output |
LVTTL output the lamp enable signal. |
|
6 |
Continuous_strobe |
Output |
LVTTL output the continues strobe signal. |
|
7 |
Ext_trigger_in |
Input |
LVTTL input the trigger signal. |
|
8 |
Single_strobe |
Output |
LVTTL output the single strobe signal. |
|
9 |
SPI_SCK |
Output |
The SPI Clock signal for communications to other SPI peripherals |
|
10 |
SPI_MOSI |
Output |
The SPI Master Out Slave In (MOSI) signal for communications to other SPI peripherals |
|
11 |
SPI_MISO |
Input |
The SPI Master In Slave Out (MISO) signal for communications to other SPI peripherals |
|
12 |
SPI_CS |
Output |
The SPI Chip/Device Select signal for communications to other SPI peripherals |
|
13 |
GPIO0 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
|
14 |
GPIO1 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
|
15 |
GPIO2 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
|
16 |
GPIO3 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
|
17 |
GPIO4 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
|
18 |
GPIO5 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
|
19 |
GPIO6 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
|
20 |
GPIO7 |
Input /Output |
General Purpose Software Programmable Digital Inputs/Outputs, LVTTL Logic. |
4 Order Guide
Order number Rules:
|
Model |
Spectral region |
Slit width |
||
|
ATP5030 |
Short wavelength |
Long wavelength |
Slit width |
|
For example:
What to buy ATP5030, spectral region: 200-1000nm, slit width is 50 um, then the order no is:
ATP5030-200-1000-050
|
Order No |
Spectral region |
Slit |
|
|
ATP5030-200-400-### |
200~400 |
10 μm 25 μm 50 μm 100 μm 200 μm Other:______μm |
|
|
ATP5030-200-850-### |
200~850 |
||
|
ATP5030-200-1000-### |
200~1000 |
||
|
ATP5030-340-850-### |
340~850 |
||
|
ATP5030-600-1100-### |
600~1100 |
||
|
ATP5030-###-###-### |
Other |
